德国原装进口Marienfeld LCP (Lipidic cubic phase)配套耗材套装Sandwich Set 0890003

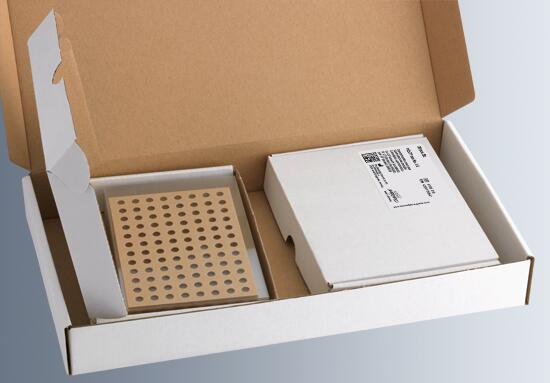

The LCP sandwich set consists of a base glass slide and an optimized cover slip.

Bottom slide

dimensions: approx 127.8 x 85.5 mm, thickness approx. 1 mm

with superhydrophobic glass surface

covered with a 0.2 mm high spacer. This spacer has 96 recesses of 5 mm diameter. They are consistent with the SBS format for robotic handling. The spacer has an adhesive surface to which the hydrophobic coverslip attaches. The crystallization drops are, hence, sealed in these reaction chambers.

in boxes of 20 pcs.

Cover slip

dimensions: approx 112 x 77 mm, thickness No. 1.5 (0.16 to 0.19 mm)

with superhydrophobic glass surface

optimized for bright field, UV and fluorescent microscopy

in boxes of 20 pcs.

0890003     原装进口Marienfeld LCP配套耗材套装 sandwich set: Bottom slide and cover slip，High spacer approx. 0.2 mm，20套/箱

Paul Marienfeld GmbH & Co. KG（Made in Germany）
